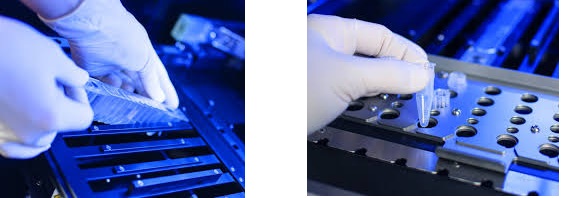

croBEE NA16 Nucleic Acid Extraction System is a compact, fully automated system for simultaneous nucleic acid extraction from a wide range of biological materials.

The extraction principle is based on the nucleic acid binding to paramagnetic particles. Easy handling is provided by a disposable reagent cartridge containing all the necessary chemical agents. The extraction process results in high-quality DNA/RNA with highly reproducible yields.



Thông số kỹ thuật

▶ Key features

  • Highly reproducible yields of nucleic acids
  • Elimination of faults caused by the operator
  • Cross-contamination effect minimization
  • Fully automated workflow, minimizing manual steps
  • Cost-effective solution

▶ Technical specification

Extraction Principle fully automated magnetic separation
Reagent Application Method disposable reagent cartridge
Sample Volume 200 μl / 400 μl / 1200 μl
Elution Volumes 60 μl / 100 μl / 150 μl / 200 μl
Capacity 1–16 samples / extraction process
Processing Time 44–80 minutes
Nucleic Acid Purity DNA: OD A260/280 : 1.8 ± 0.1
RNA: OD A260/280 : 2.0 ± 0.2
Heating Block Temperature Range RT – 90 °C
Computer integrated PC
User Interface and Control 7 inch colour touch screen
Decontamination built-in UV lamp
Dimensions (Length x Width x Height) 760×710×770 mm
Weight 68.5 kg
Power Supply 100V–240V, 50/60Hz, 1 kW
Device Type stand-alone device
Certification CE IVD for in vitro Diagnostic Use

▶ Compatible extraction kit

  • Kit: croBEE NA16 Nucleic Acid Extraction Kit
  • Technical specifications:

– Flexible extraction capacity with various samples, commonly used in medical testing: total blood, serum, plasma, cerebrospinal fluid (CFS), urine, swab, …
– All chemicals required for each sample are packed in a cartridge, eliminating the possibility of cross contamination.

▶ Certifications: CE-IVD for in vitro Diagnostic Use

ORDER INFORMATION

Product name

Technology

Cat. No.

Package

croBEE NA16 Nucleic Acid Extraction System

fully automated magnetic separation

CBNA/16

1 piece

croBEE 201A Nucleic Acid Extraction Kit

fully automated magnetic separation

CBNA201A/096

96 isolations
